技術特性 Technical Principles
工作原理 Operating Principle:

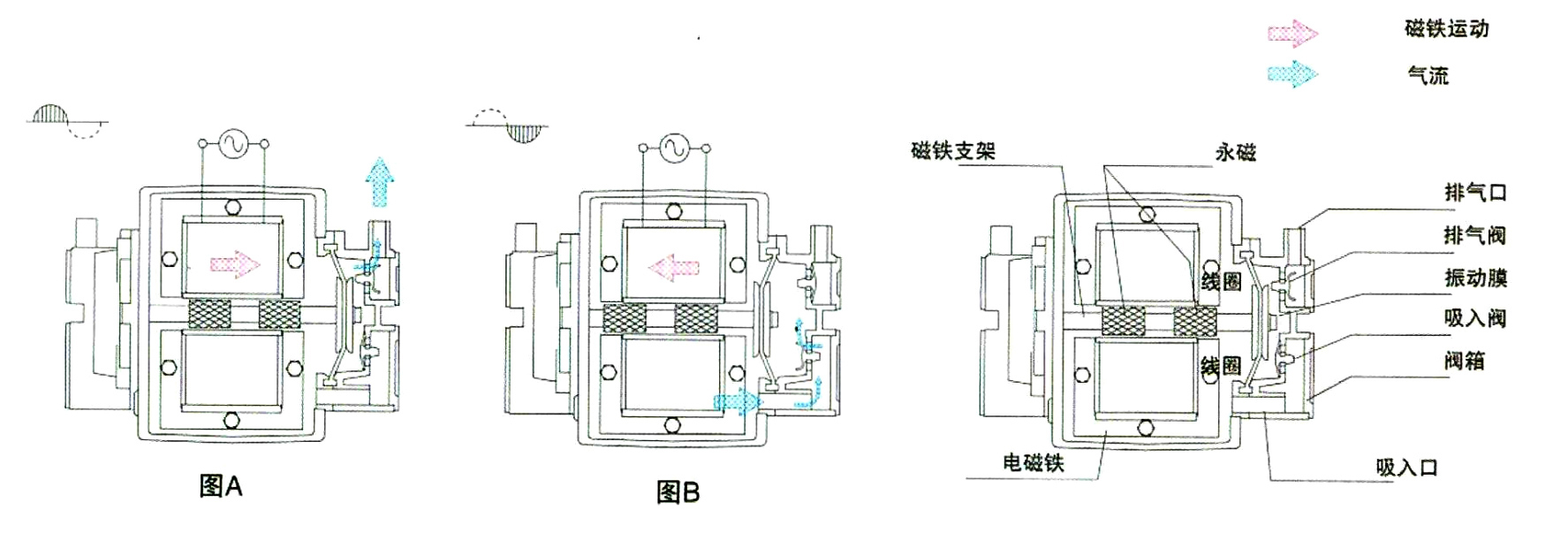

氣泵的工作原理是通過交變電流產生交變磁場，使磁鐵來回震蕩，帶動振動膜，壓縮空氣。磁鐵先朝著圖A中箭頭的方向運動，然后朝著圖B中的箭頭方向運動。磁鐵以等同電源頻率在電磁場之間來回運動，磁鐵震蕩時，連接著振動膜，改變閥箱的容積，產生壓力和真空。
Linear compressors function by enercizing electromaanets that oscilate a maanet in opposite directions. Firstthe maanet moves in the direction of the arrow in Fia. A and then in the direction of the arrow in fig. B. The maanemoves back and forth between the electromagnets at the same frequency as the power supply. The magnet isconnected to two diaphrams and as the maanet oscillates, it changes the valve box volume, which creates vacuumorpressure.
優點 Advantages | 用途 Applications |
無需機油 Comdletely Oil free | 污水處理凈化槽Waste Water Treatment Septic Tank |
| 低噪音，低電耗，低振動?Very little pulsation,Low noise | 水產養殖、觀賞魚等增氧用 |
| 緊湊輕便結構 Compact and light construction | Adding oxygen for breeding?beach,ornamental fish, etc. |
容易保養 Low maintenance | 氣泡浴池Bubble Bath |
吸排兩用 Pressure&vacuum Type | 臭氧產生、移動廁所 Producing OzoneMobile Restroom |
| 高可靠性的自動開關配置 | 機器空氣源(空氣冷卻器，噴墨打印機)? |
| High quality auto-stopper inclusive | Air source for machine (air cooler, inkiet printer |
空氣懸浮連接，低振動 Air Susension-style connection | 真空產生用(真空吸筆) Producing vaccum(vacuum suction pen) |
散熱好，使用長壽命 | 按摩器 Air massager |
| High heat dissipation, long life expectancy | 健康醫療器械用(防褥瘡氣墊床)?? |
| 低損耗的空氣回路，省電 | Health care equipment(anti bed sore?mattress)? |
Low Dressure loss Air circuit | 實驗室儀器 Laboratory equipment |
結構示意 Struction:
